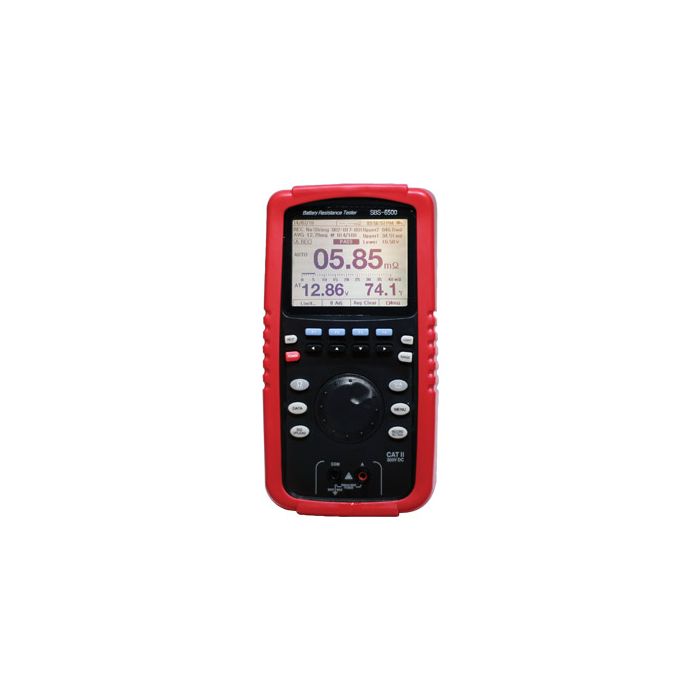

SBS-6500: Digital Battery Tester

Complete Battery Impedance Tester and Data Logger (Meets IEEE/NERC Standards)

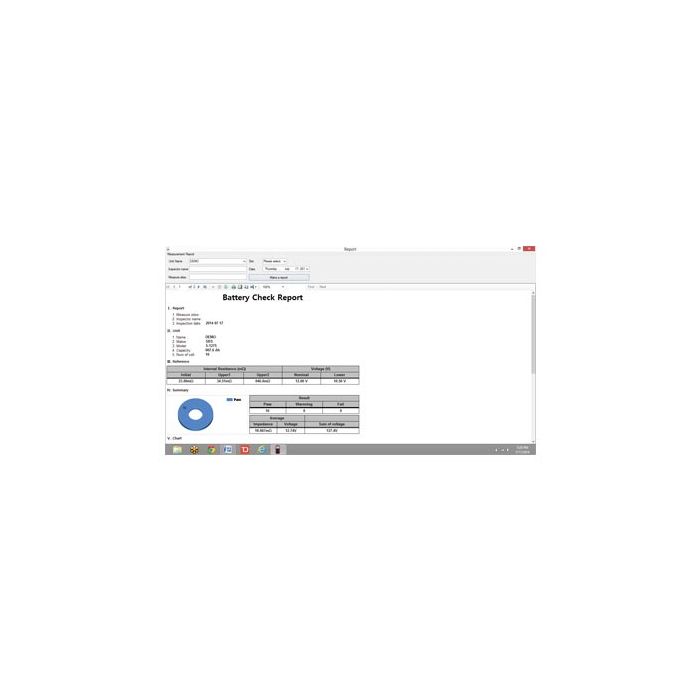

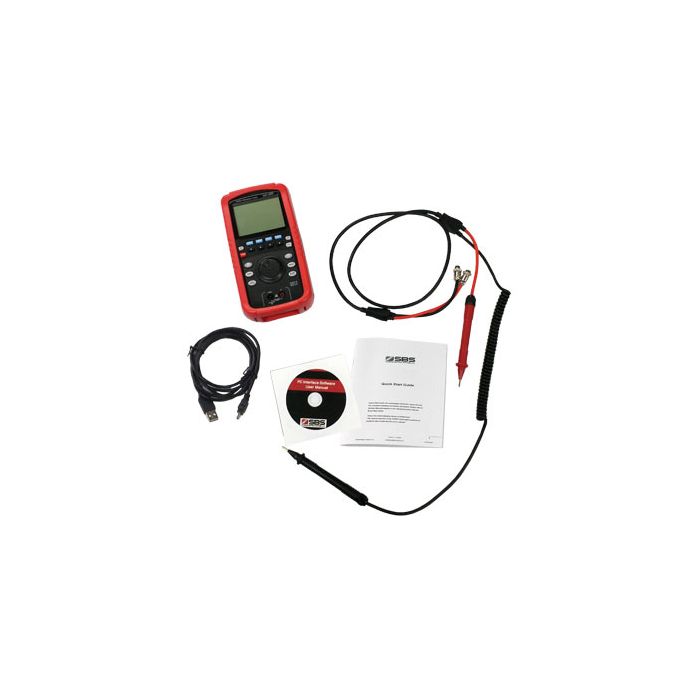

The SBS-6500 is a multipurpose impedance and voltage tester. Cell and inter-cell and terminal connector readings are taken within seconds using the included pin probes (or optional clamp probes). The SBS-6500 can be programmed with site names, battery details and pass/warning/fail alarm set points for ohmic measurements (pass/fail for voltage) without the high current requirements and float voltage drop necessary for internal resistance testing types. All data is retained in the meter’s internal memory for easy on-site access. With a computer and the included software, the SBS-6500 generates custom graphical reports for historical trending and comparisons.

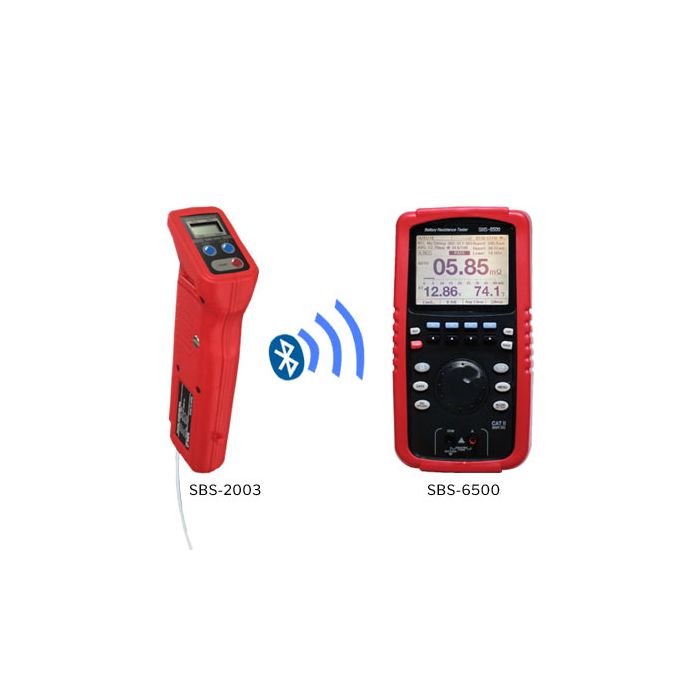

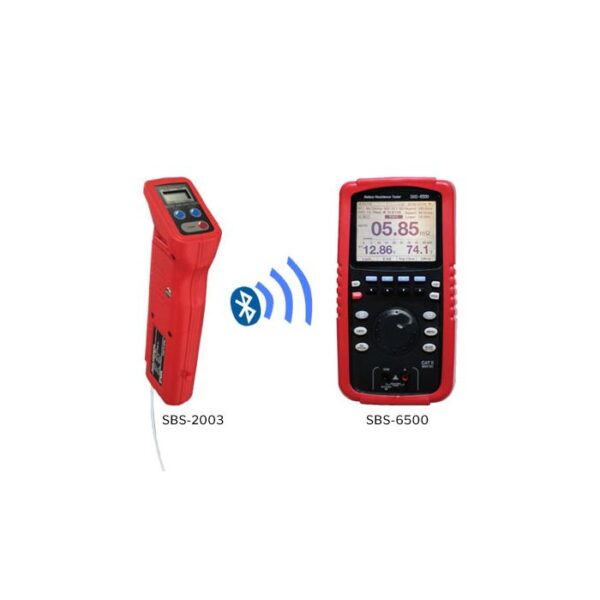

The SBS-6500 pairs with our SBS-3510 and SBS-2003 digital hydrometers to import specific gravity readings into the SBS-6500. With this data merge, the SBS-6500 will store and generate reports with voltage, ohmic, temperature and gravity readings.

  • Versatile: tests flooded lead acid, VRLA, Ni-Cd, Li-ion and NiMH batteries and strings
  • Automatically measures and stores data within seconds
  • Voltage testing range of 0–100 Vdc
  • IEC 6101-1 CAT II 300V Safety Standard
  • Built-in NiMH battery with unit charging cord
  • Large 3.8″ LCD backlit display
  • Telecom
  • Utility
  • Oil and Gas
  • Solar/Photovoltaic
  • UPS
  • Emergency Lighting
  • Railways
Weight 2.600000
Impedance Measurement Range: 1 mΩ to 400Ω Resolution: 0.001 mΩ Accuracy: ±1.0%
Power Supply(s) Rechargeable NiMH battery pack
Voltage Measurement Resolution: 0.001VAccuracy: ±0.1%
Display Type 3.8" LCD, 320 x 240 backlit screen

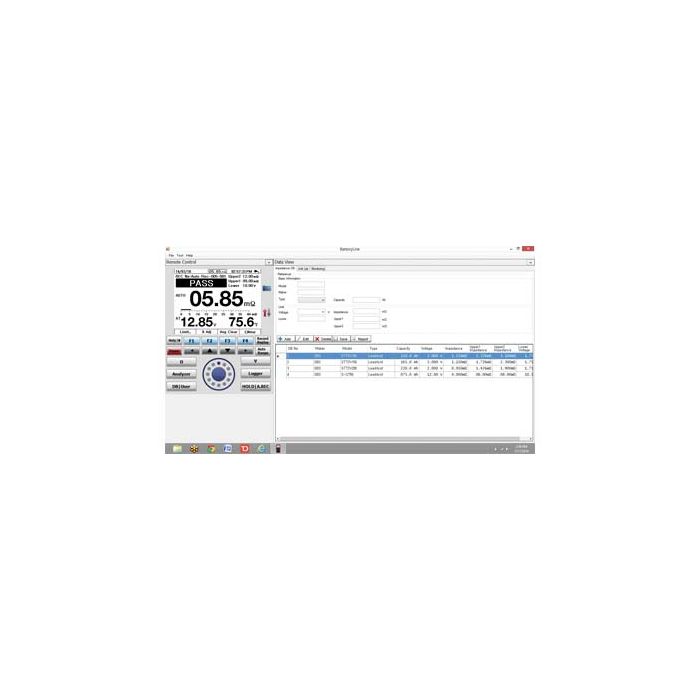

Software SBS-6500 Battery Management Software
Software Format MS Windows
Ah Measurement Range 5–6000 Ah, 0–100 Vdc
Operation Time 8 hours
Data Storage 7,500,000 records
Operating Temperature 14° to 122° F
Communications Type USB, Bluetooth w/ SBS-2003
Dimensions 4.2"W x 2.2"D x 8.3"H
Part No. Description
SBS-2003 Specific gravity tester

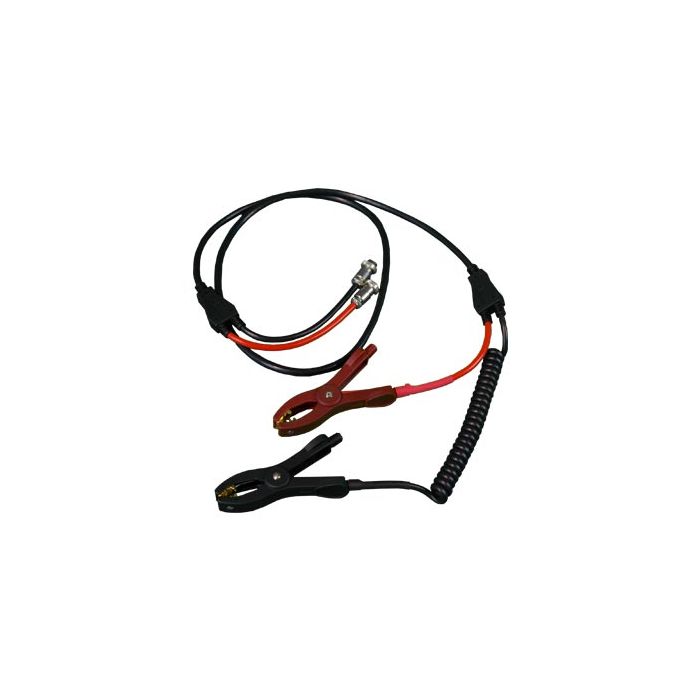

6500-CLAMP-PROBE Clamp probe leads

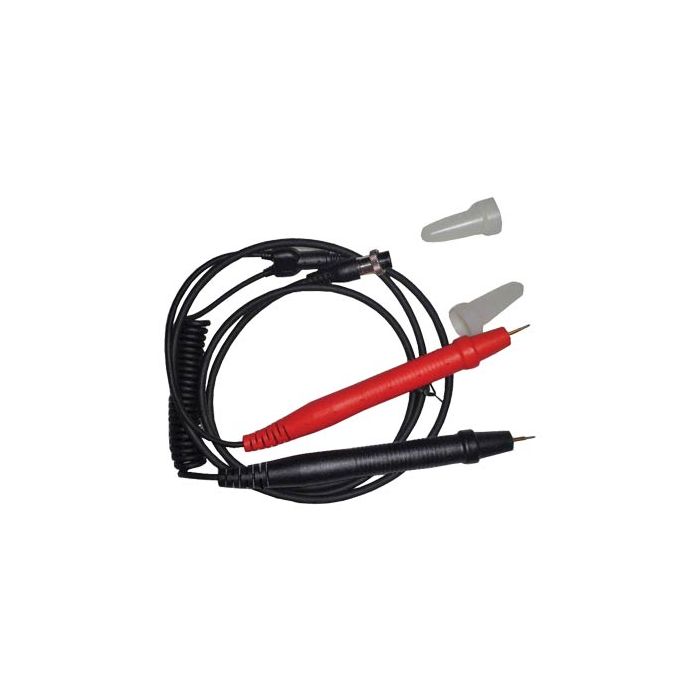

6500-PIN-PROBE Replacement pin probe leads
6500-PIN Replacement pin sets for 6500-PIN-PROBES
6500-BATT Spare NiMH battery for SBS-6500
