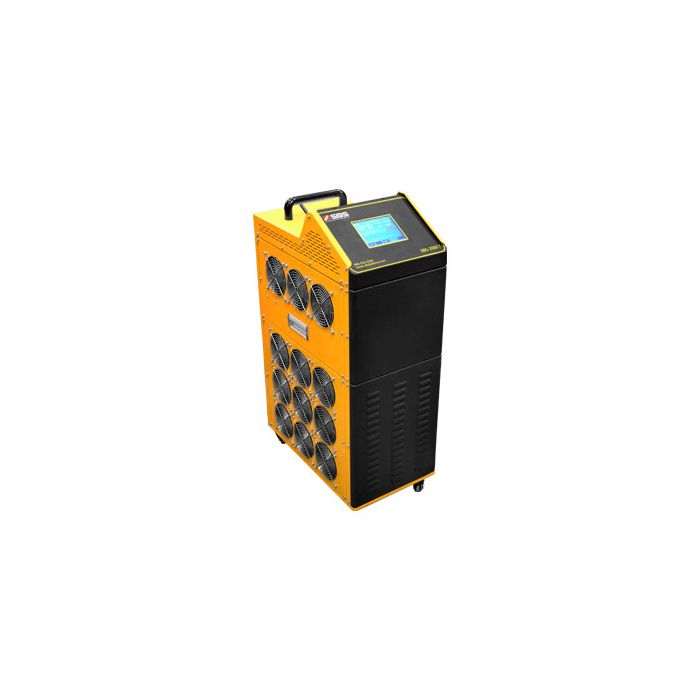

SBS-200CT: Forklift Battery Regenerator & Discharge Cycler

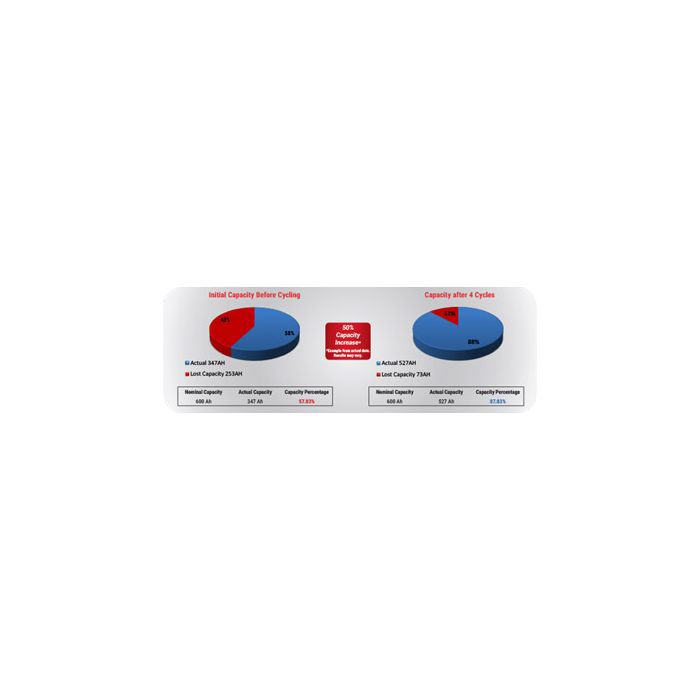

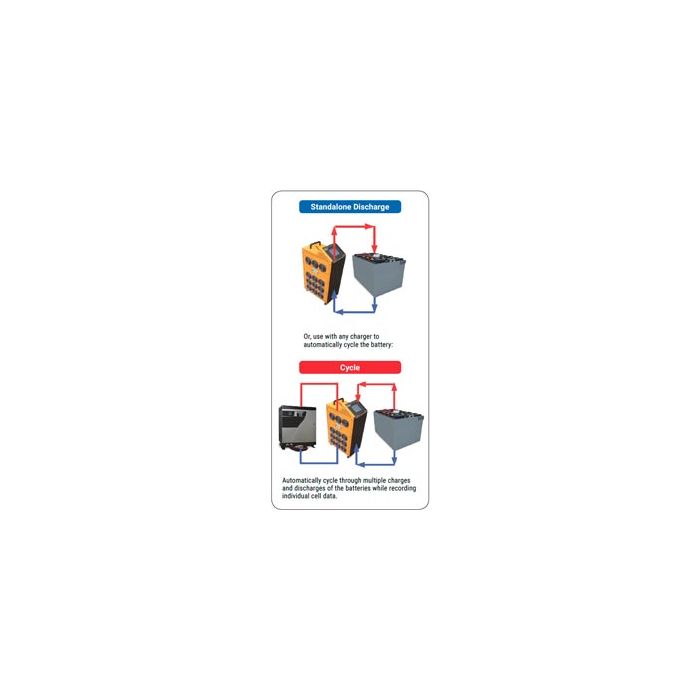

The SBS-200CT is a discharge and charge cycler for battery testing and battery rejuvenation. The voltage range of 24–96 Vdc covers many types of traction batteries including: stationary, forklifts, automobile, golf cart, train, wheel chair, etc. When equipped with any industrial charger (compatible with most models, sold separately), the SBS-200CT provides an unmanned discharge and charge cycling solution to help increase battery capacity and prevent scrapping and warrantying those batteries. The unit includes wireless modules to collect and record individual cell readings during discharge/charge and software to generate detailed reports.

  • Wide voltage and current range from 2–96 Vdc / 0–200 Amps
  •  5.7 in. LCD touch screen
  • 30 parameter presets with stop/alarm points that can be adjusted during testing
  • 4 adjustable stop points and multiple alarm designs to control the discharge process intelligently

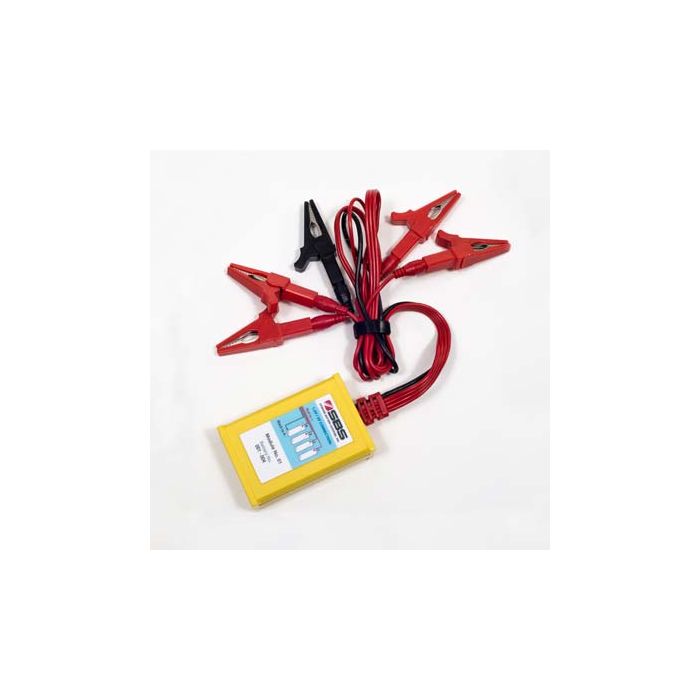

  • Wireless modules that measure and record individual cell voltages during testing
  •  View test data in real time on screen or with computer via RS232
  • Download data after discharge to USB drive

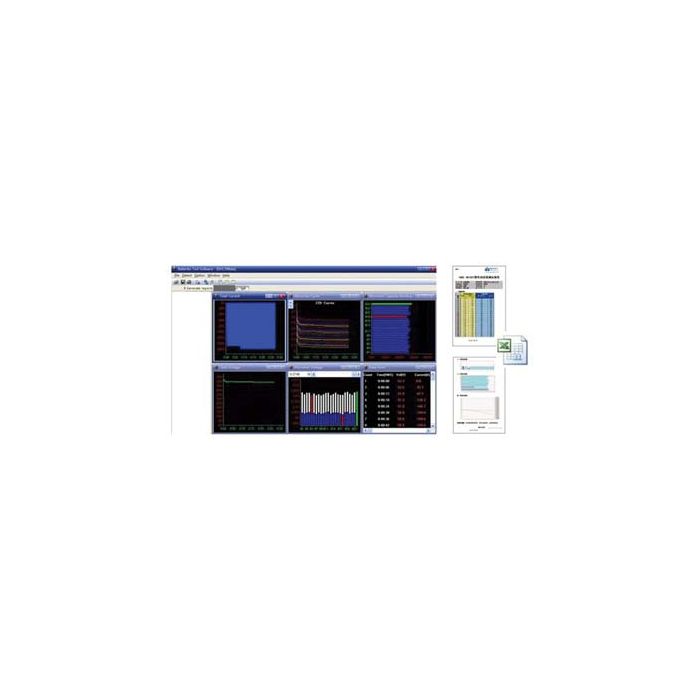

  • Computer software for capacity evaluation and report generation
  • Telecommunications
  • Utility
  • UPS
  • Battery manufacturing
  • Industrial maintenance
  • Critical power
  • Data center
Weight 121.000000
DC Current Range 24 Vdc: 0–180 Amps36–96 Vdc: 0–200 Amps
DC Volt Range 24–96 Vdc
Accuracy & Resolution ±0.5%, 0.1 Amp
Communications Type USB / RS232
Internal Memory 8MB Flash
Display Type 5.7" LCD Color Touch Screen
Power Supply(s) 120 Vac, 50/60 Hz
Dimensions 11.6 x 19.8 x 40 in.
Part No. Description
BCT110/220 - 1000 1000 Watt Voltage Transformer110/220 Vac 50/60 Hz
MODULE-2/6/12-15 2/6/12 Wireless module kit w/ caseQty. 15 (+2 spare)*
MODULE-200CT-10 Wireless module kit, SBS-200CT
