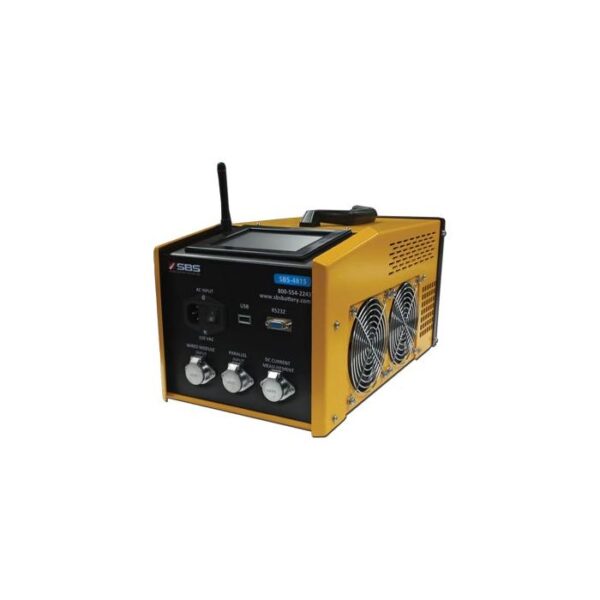

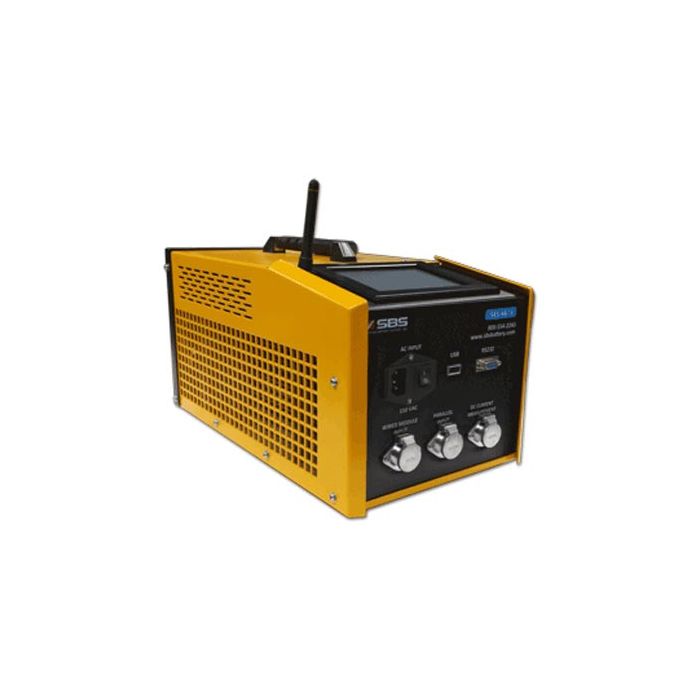

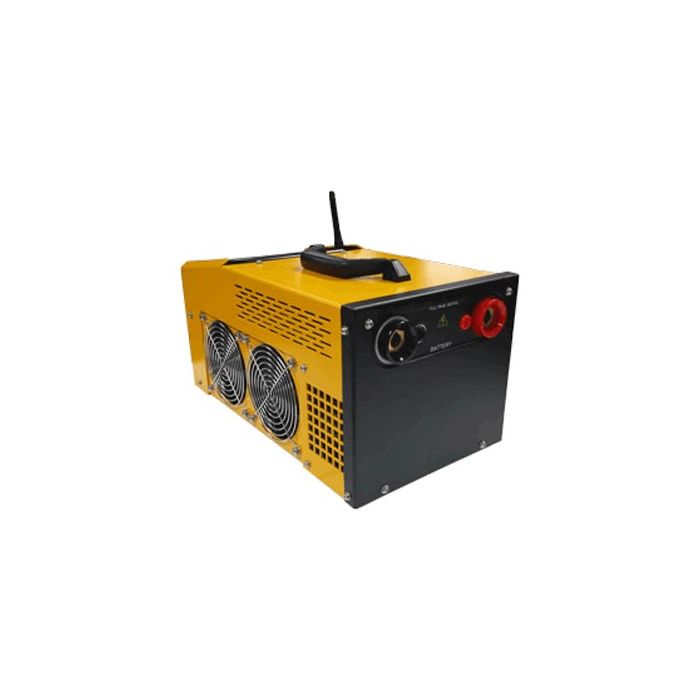

SBS-4815CT: Battery Capacity Tester

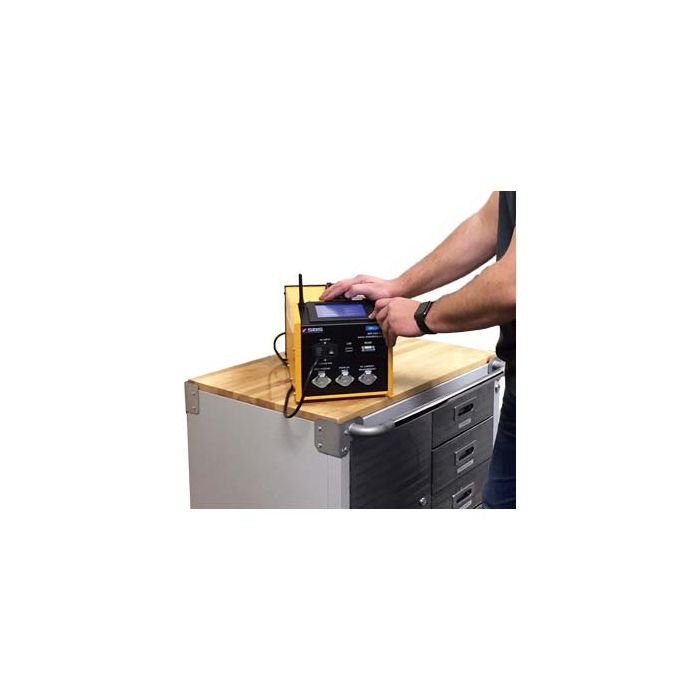

The SBS-4815CT is a fully programmable and portable constant current load bank including individual cell monitoring wireless modules with detailed data acquisition, display and reporting capabilities.

Built-in memory continuously records discharge data including: overall system voltage, current and individual cell voltages (when modules are installed).

Parallel Operation

Alone the SBS-4815CT has a 0–150 Amp constant current draw range. However it is possible to parallel additional load banks of the same voltage range with the SBS-4815CT to increase current draw.

With the optional P/N 8400-600A DC clamp the user can discharge up to 750 Amps and the SBS-4815CT will monitor the total DC current being drawn by up to three load banks in parallel.

  • Create a “Features” tab and include:
  • Voltage and current range: 20–60 Vdc / 0–150 Amps
  • 5.7″ LCD touch screen
  • 4 adjustable stop points and multiple alarm designs to control the process intelligently

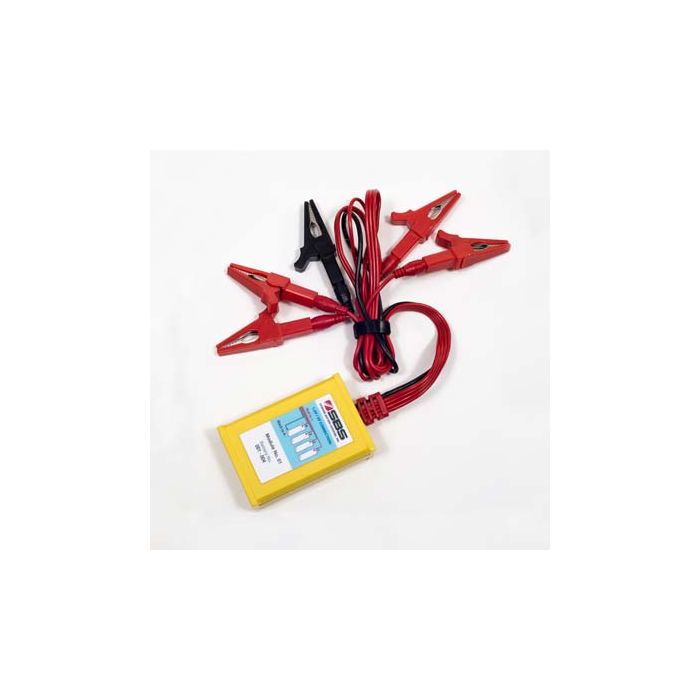

  • Wireless modules that measure and record individual cell voltages during testing
  • View test data in real time on screen or with computer via RS232
  • Download data after discharge to USB drive
  • Computer software for capacity evaluation and report generation
  • Telecom
  • Forklifts, Golf Carts & AGVs
  • Power Plants
  • Oil Companies
Weight 21.000000
DC Current Range 20–40 Vdc: 0–75 Amps40–60 Vdc: 0–150 Amps
DC Volt Range 20–60 Vdc
Accuracy & Resolution ±0.5%, 0.1 Amp
Communications Type USB / RS232
Internal Memory 8MB Flash
Display Type 5.7" LCD Color Touch Screen
Power Supply(s) DC: 20–60VAC: 120 Vac, 50/60 Hz
Dimensions 16.25 x 9.0 x 9.0 in.
Part No. Description
8400-600A 600 DC Current Clamp
SLAVE-CAB-8400>8400 Paralleling CableMore Info
