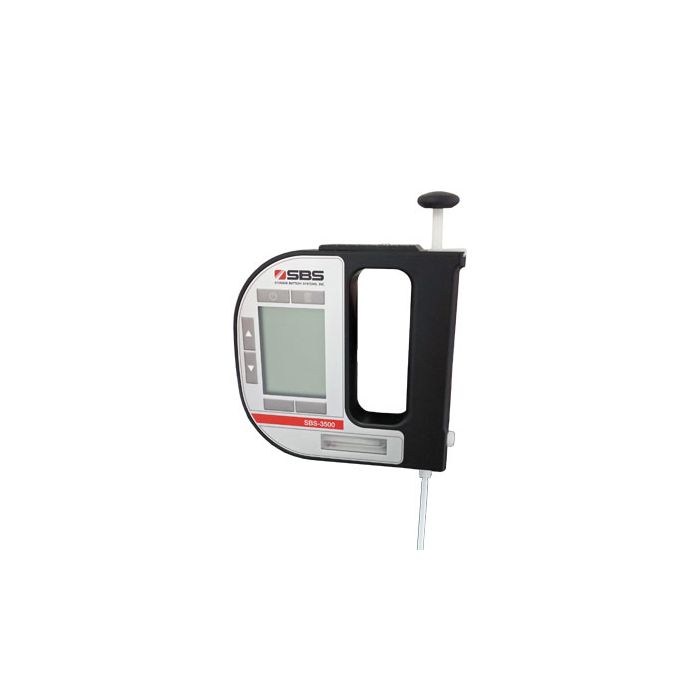

SBS-3500: Digital Hydrometer and Tester

Specific Gravity Tester with Downloading Capabilities for Lead Acid or Nickel Cadmium (Ni-Cd) Batteries

The SBS-3500 uses oscillating U-tube technology to measure specific gravity and temperature of lead acid or nickel cadmium (Ni-Cd) batteries within seconds. The unit offers a wide reading range, able to take readings between the range of 0.0000 to 3.0000. With the ability to communicate wirelessly to a printer or computer via the integrated IrDA interface, testing results can be uploaded into an easy-to-read report.

  • Measures specific gravity, ambient temperature and count
  • Tests both lead acid and nickel cadmium (Ni-Cd) batteries
  • Time savings: 5 times faster than conventional methods
  • ± 0.001 accuracy
  • Automatic temperature compensation
  • Compact, lightweight design enabling one-hand measurement
  • Stores up to 100 sample IDs for easy sample identification
  • Stores up to 1024 measurements including time stamps and sample IDs
  • Infrared data interface for data exchange
  • LCD display
  • Utility
  • UPS
  • Data Centers
  • Telecom
  • Material Handling
  • Battery Manufacturing
Weight 0.800000
Calibration With dry air or pure water
Measuring Time Within 3 seconds
S.G. Range 0.0000 – 3.0000
Temperature Measuring: 0 to 40° C (32 to 104° F)Ambient: -10 to 50° C (14 to 122° F)Storage: -20 to 70° C (-4 to 158° F)
Method of Detection Specific gravity; oscillating tube method
Accuracy & Resolution ±0.001; temperature: 0.2° C (0.4° F)
Power Supply(s) (2) AA batteries
Filling Tube 7" L
Dimensions 5.5" L x 5.4" W x 1" H
Part No. Description
SBS-3500-TUBE 7" filling tube for SBS-3500
SBS-3500-PUMP Replacement hand pump for SBS-3500
