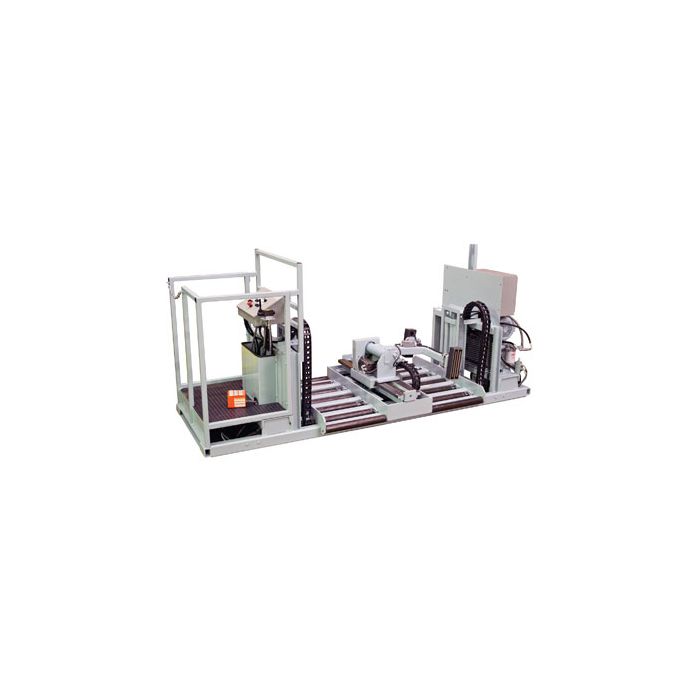

Sackett Hydra-Handler Super: Single Level Battery Changer

The Sackett Hydra-Handler Super is a narrow single level battery changer. Easily cut your battery change time in half when compared to a manual or pallet jack mounted battery exchange system.

Designed to be a cost effective, efficient and safe battery changer solution, the Hydra-Handler Super is ideal for fleets with up to 30 forklifts.

  • Pass through design on both compartments
  • Roller deck lift(R)-LOW-6″ HIGH-26″
  • Fixed operator compartment (does not raise with roller deck)
  • Lift system: Direct lift by 2 hydraulic cylinders
  • Drive system: Spring loaded 5th wheel (S”dia. x 6″w Polyurethane) floor drive with 4 rigid casters
  • Extractor arm: Rollover and travel – independent sprocket and chain drive (Arm rotates low to handle short batteries of about 15″ tall)
  • Construction: Base frame -4″ x 3″ x 5/16″ wall, structural steel tubing
Weight 5.250000
Raise / Lower Speed 8 fpm
Travel Speed 125 fpm
Draw Bar Pull / Vacuum 1200
Stacking Single level
Total Compartment Rollers 8
