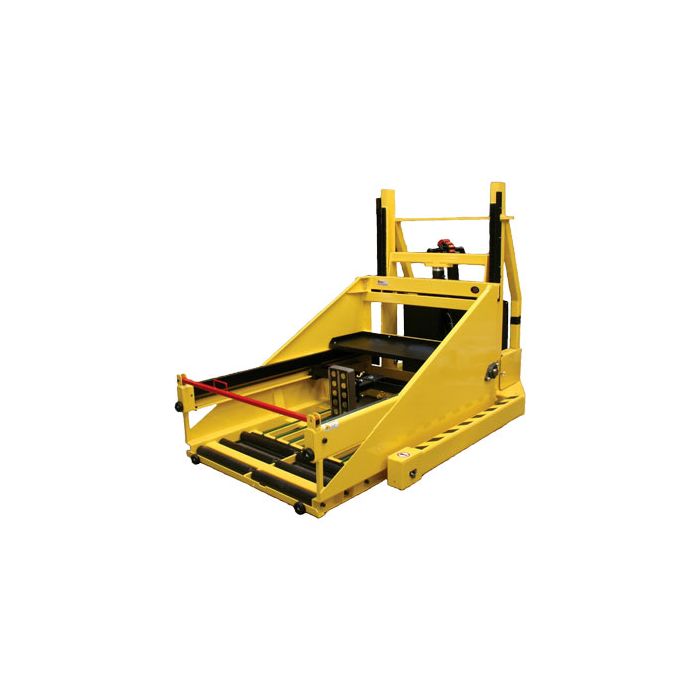

MTC Walk-A-Puller: Battery Changer

The MTC Walk-A-Puller (WBP) is a portable battery changer that is ideal for small fleets that require 20 to 40 battery changes per day. Walk-A-Puller accommodates fleets with a variety of compartment sizes up to 27 inches. Examples include low profile AGV batteries to high capacity turret trucks and counter balance trucks.

The Walk-A-Puller combines its own power and drive unit, carriage assembly and attachment system to give you a portable, but complete, heavy-duty battery handler. The unit’s ease of operation allows qualified forklift operators to safely and easily change their own forklift batteries.

The adjustable extraction arm allows easy access to batteries over wide outriggers. The retracted reach of the extraction arm is 6.75″ and it is adjustable in 1″ increments up to a maximum reach of 11.75″.

Forklifts that require conversion to allow for side extraction, slide strips and roller systems are available from Exponential Power. We also offer a magnetic extraction option.

  • Enables battery changing at various locations
  • Capable of reaching virtually all battery storage compartments
  • Allows for battery attachment over wide outriggers
  • Ensures stability under maximum load conditions
  • Allows operator to choose the safest speed at which to retrieve and transport each lift truck battery
  • Allows lift truck operator to safely change battery
  • Portable, self-contained battery changer unit
  • Adjustable extraction arm
  • Standard 4,000 lb. capacity
  • Two speed electric drive
  • Ease of operation
  • Front loading
  • Vacuum extraction
  • Single point/Dead-man controls
  • Up-Down and In-Out hydraulic powered
  • 24V battery pack with 110V built-in charger
  • Dual battery safety slop
  • Turning radius: 84″
  • Hour meter
Adjustable Height Off Floor 3.5" to 27.5"
Maximum Compartment Depth 48"
Vacuum Cup Reach Retracted 4 7/8"
Ground Clearance 1.5"
Grade Clearance 10%
Turning Radius 7 ft.
Maximum Floor-to-Roller Height 27.5"
Vacuum Cup Reach Extended 11 7/8"
Minimum Battery Width 7.5"
Vacuum Cup Size 10" round / 7" x 12"
Roller Diameter 2.5"
Minimum Service Aisle Width 14 ft.
Push/Pull Drive Chain Size #50
Hydraulic Power Unit Gear
Raise / Lower Speed 8 fpm
Travel Speed 240/180 fpm
Draw Bar Pull / Vacuum 900 lb
Minimum Battery Height 18"
Roller Shaft Size 11/16"
Battery Attachment Mechanism Vacuum cup
Maximum Load Capacity 4000 lb
Minimum Battery Length 14"
Maximum Battery Dimensions (L x W x H) 44" x 40" x 32"
Battery Compartment Width 40.5"
Dimensions 108.5"L x 56 9/16"W x 68"H
