LM Power DC POWER SYSTEM High Frequency Technology

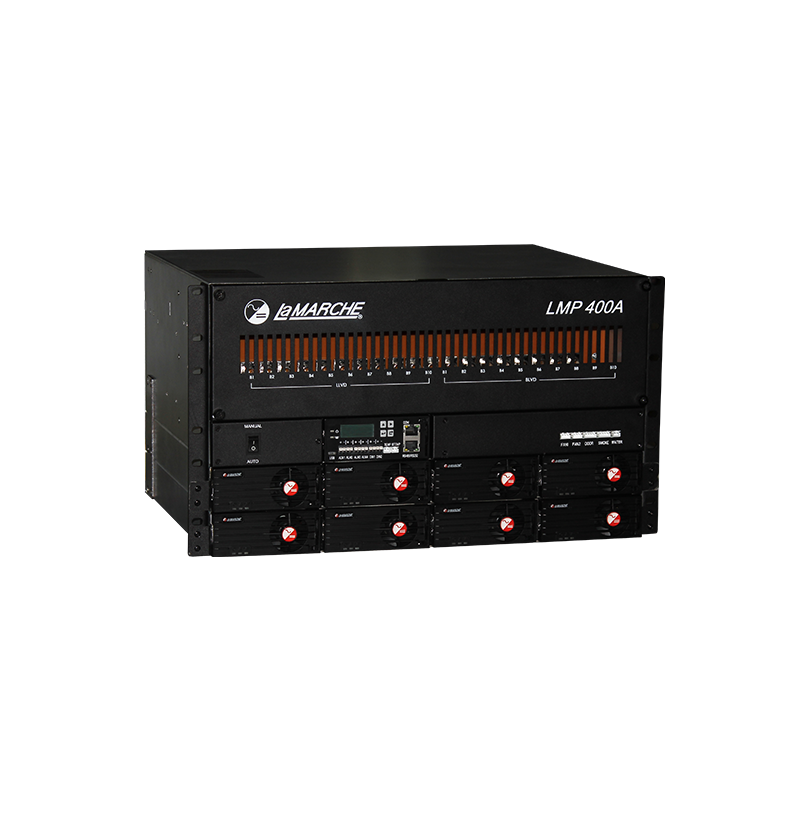

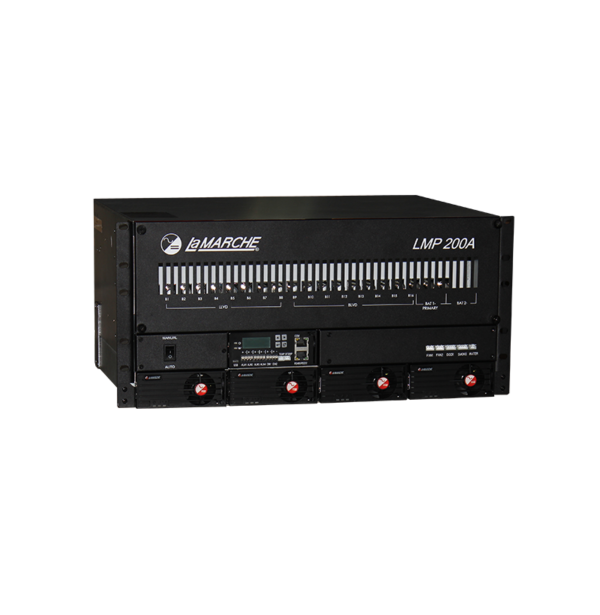

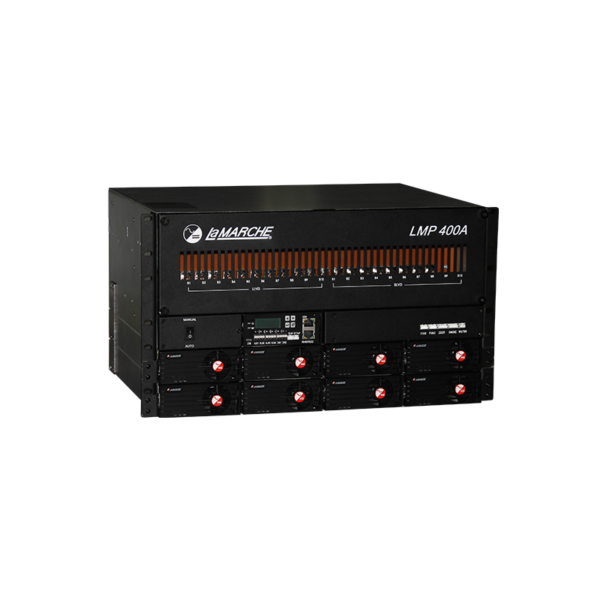

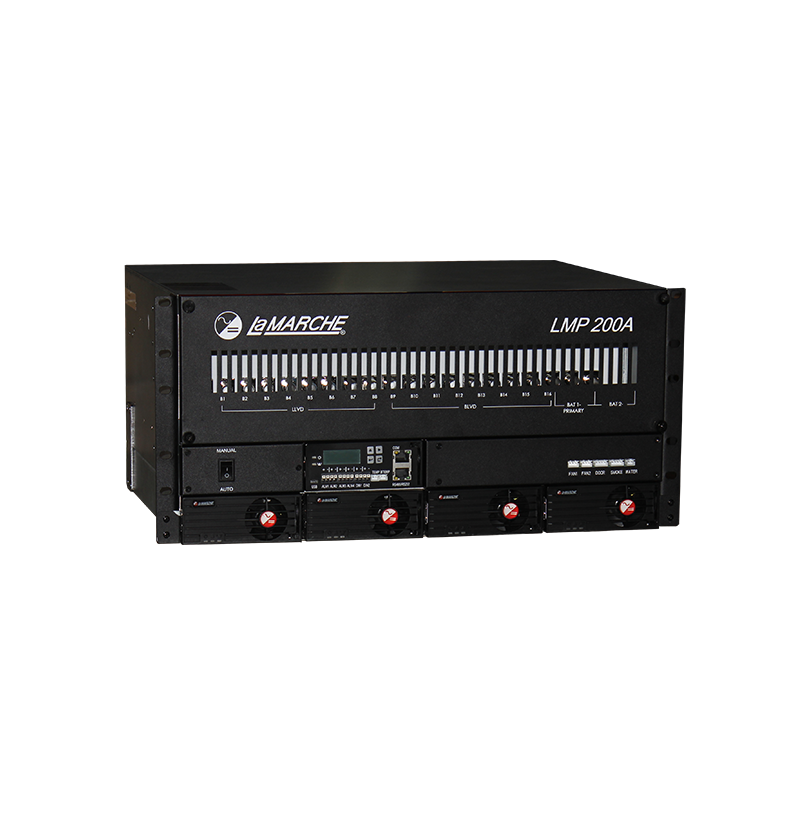

The LmPower Series is a compact -48V DC power system with high-performance rectifiers. The pre configured LmPower models are: LMP-100A (1RU), LMP-200A (5RU) and LMP-400A (6RU). LmPower series can be mounted on standard 19” and 23” racks. The LmPower Series utilizes hot swappable high efficiency LmPower R50 1RU 3000W (50A) rectifiers at 96% efficiency. The LmPower Series offers a robust system controller with an embedded I/O interface equipped with digital inputs, dry contact alarm outputs and temperature sensors input ports. In addition, the system offers intelligent battery management, remote access and a rectifier hibernation/cycling function for increased efficiency.

  • 50A/48V 1RU Rectifier: Universal AC Input, High Density, High Efficiency, Excellent High Temperature Performance (Full Load @ 50°C)
  • Wide Operating Temperature Range (-40°C to 65°C)
  • Hot-Swappable Rectifiers for N+1 Redundancy
  • Standard Installation Structure Design, Adapt to Various Applications
  • Rectifier Hibernation Function to Help Increase System Efficiency
  • Intelligent Battery Management and Protection to Help Prolong Battery Lifespan
  • Support Environmental Signal Monitoring and Remote Management Through Dry Contact, Serial Interfaceor Ethernet Interface (TCP/IP, Web Browser, SNMP)
  • Load Distribution Breakers With BLVD/LLVD (Low Voltage Battery/Load Disconnect)

APPLICATIONS



Telecommunications Networks. Ideal for powering telecom base stations, small cell deployments, and central office facilities requiring reliable -48V DC power with high efficiency and redundancy.



Data Centers & Network Equipment. Supports routers, switches, and server racks in data centers where consistent and scalable DC power is essential for uptime and equipment longevity.



5G Infrastructure & Edge Computing Sites. Perfect for distributed 5G and edge computing applications, offering compact, scalable power systems that handle high loads in space-constrained environments.



Broadband & Cable TV Systems (CATV). Delivers stable DC power to headend and hub sites for broadband and CATV providers, maintaining uninterrupted service to subscribers.



Railway & Transportation Communication Systems. Used to support railway communication, signaling, and control systems with dependable -48V DC power in demanding environments.



Industrial Networking & Control Systems. Provides power for industrial Ethernet switches, control panels, and automation devices that operate on -48V DC.



Remote Telecom Shelters & Outdoor Cabinets. Performs reliably in outdoor enclosures and shelters, with a wide operating temperature range and remote management capabilities for off-site monitoring.



Wireless & Satellite Communication Systems. Ensures continuous power for wireless base stations and satellite uplink/downlink equipment that rely on DC infrastructure.



Utility SCADA & Monitoring Systems. Supports utility and energy companies’ SCADA systems with compact, remotely managed power systems for grid monitoring and control.









ADVANTGAES:



Exceptional Efficiency with Rectifier Hibernation (Up to 96%). LmPower’s 3000W rectifiers operate at an impressive 96% efficiency, reducing energy waste and operational costs. The rectifier hibernation/cycling function further optimizes energy use during low load periods, which is crucial for telecom networks and data centers aiming to minimize power consumption and heat output.



Hot-Swappable Rectifiers with N+1 Redundancy. Hot-swappable design allows maintenance or replacement of rectifiers without system downtime. N+1 redundancy ensures continuous operation even if one rectifier fails, making it ideal for critical infrastructure where uptime is non-negotiable.



Intelligent Battery Management and LLVD/BLVD Protection. The intelligent battery management system monitors battery health, temperature, and charging conditions to extend battery life. Built-in Low Voltage Load Disconnect (LLVD) and Battery Low Voltage Disconnect (BLVD) features protect both the load and batteries from deep discharge, reducing risk of failure.



Advanced Remote Monitoring & Control. With TCP/IP, SNMP, serial, and web browser interfaces, operators can remotely monitor, configure, and troubleshoot the system. This capability improves responsiveness, reduces service costs, and supports network-wide power management from a central location.



Wide Operating Temperature Range (-40°C to +65°C). The LmPower Series is built to withstand harsh environmental conditions, from freezing cold to high-heat installations. This makes it highly reliable for outdoor telecom enclosures, remote base stations, and industrial sites without climate control.
