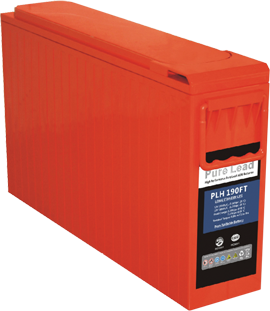

PLH Series: Front Access Batteries

12 Volt AGM Thin Plate Pure Lead Batteries: 96–182 Ah

The PLH Series battery is designed for critical applications that require the longest and most reliable life possible. They are lighter, energy dense, and can handle high temperatures better than the AFT Series battery.

  • Long float life
  • Designed to fit on 19″ or 23″ relay racks
  • Excellent high rate discharge performance
  • Copper alloy terminal inserts
  • Leak-free terminal seal
  • 100% initial capacity
  • Non-hazardous cargo for ground, sea and air transportation
  • Handles for easy handling
  • UL Listed – UL file no. MH19767
  • Pure lead positive plates for longest life
  • UL94V-O flame retardant jar/cover standard
  • Up to 2 year shelf life at 77°F
  • Fast charging acceptance
  • Telecommunications
  • UPS
  • Utility
  • Renewable
  • Railway
  • Emergency lighting
Plates Thin plate pure lead
Casing Material ABS jar/cover (FR UL94V-O standard)
Float Voltage 2.27 V/cell
Equalizing Voltage up to 2.40 V/cell
Temp. Range -40° to 149° F
Capacity at 32° F 86%
Design life at 77° F up to 15 years
Storage time at 77° F 2 years
Part No.* 8 Hr Ah Rate 10 Hr Ah Rate L x W x H (in.) Weight(lb.) I.R. (mOhms)
12PLH100FT 96 100 15.63 x 4.25 x 11.30 68.3 4.5
12PLH150FT 143 150 22.12 x 4.92 x 10.24 101 3.6
12PLH190FT 188 190 22.10 x 4.92 x 12.60 132 3.0
