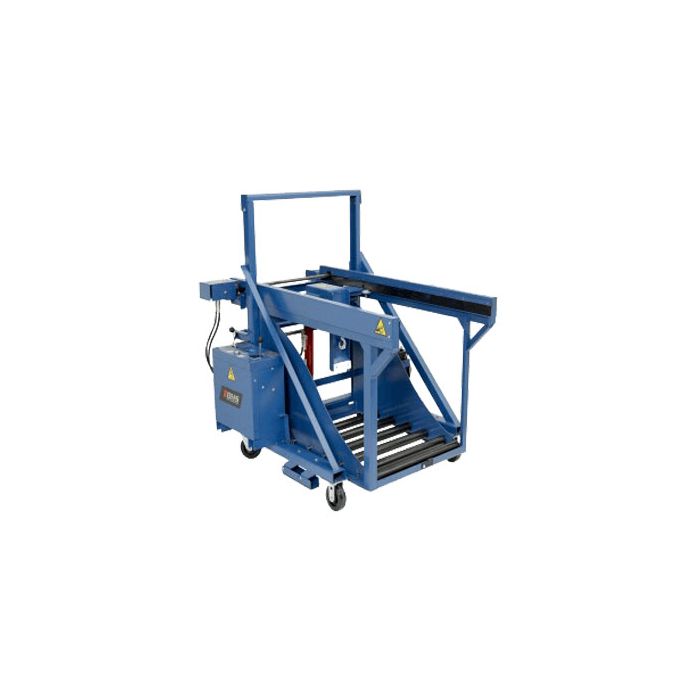

BHS BTC: Battery Transfer Carriage

Designed with a fully-powered hydraulic operated extractor arm, the Battery Transfer Carriage is powered by a 12V DC hydraulic power unit. Each function is controlled by a manual control valve with overload relief for additional safety. Lift range is from 5.5 inches to 21.5 inches.

  • Provides safe and easy low cost battery handling extraction
  • Versatile standard height adjustment allows battery extraction from most battery compartments
  • Power enclosure standard on all electric models allowing easy service and maintenance
  • High 3,000 lb (1361 kg) load capacity rating
  • Powered models offer quick and easy lift and extraction
  • Large 6″ (152 mm) phenolic wheels help protect floors and provide low rolling resistance
  • Many flexible options available to satisfy unique battery handling requirements
  • Hook and chain extraction: Hook and chain is the standard method of extraction for easy battery removal
  • Vector floor lock: Vector floor locks eliminate the need for attachment chains during battery extraction and come with easy-to-lift handles
  • Ergonomic controls: Each powered BTC model contains easy-to-use ergonomically designed controls for powered lift and extraction
Roller Diameter 2.4"
Push/Pull Drive Chain Size #50
Battery Attachment Mechanism Hook & Chain
Maximum Load Capacity 3000 lb
