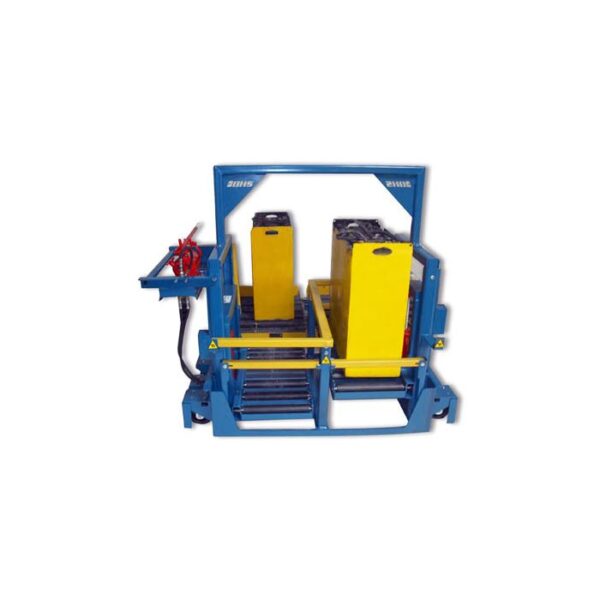

BHS BT: Bridge Trolley

The BHS Bridge Trolley allows a single person to change batteries for light battery applications. Coupled with our standard guidance track, the BT is easily pushed by hand for smooth and efficient change-outs.

  • Compact design for areas with limited space
  • Rack and pinion bed leveling ensures compartments remain level during battery transfer
  • Large 6″ (152 mm) phenolic wheels protect floors and provide low rolling resistance
  • Floor locks provide additional safety
  • Spark-proof poly rollers make transfers safe and easy
  • Battery Containment Bars enclose compartments to secure batteries during transport
  • Designed for pallet jack and light picker applications equipped with roller beds
  • Two independently controlled roller compartments
  • Angle Guide Track (SGT-A) provides alignment and guidance of the trolley (sold separately)
  • Steel End Stops (TRK-ES) prevent unit from running off of guide track (sold separately)
  • 3.88″ to 13.88″ (99 mm to 353 mm) roller bed height
Weight 892.000000
Ground Clearance 0.5"
Roller Diameter 2.4"
Hydraulic Power Unit Hydraulic - Hand Operated
Raise / Lower Speed 1 Stroke = 0.375"
Maximum Load Capacity 1100 lb per Compartment
Dimensions 70.13"L x 43.63"W x 58"H
