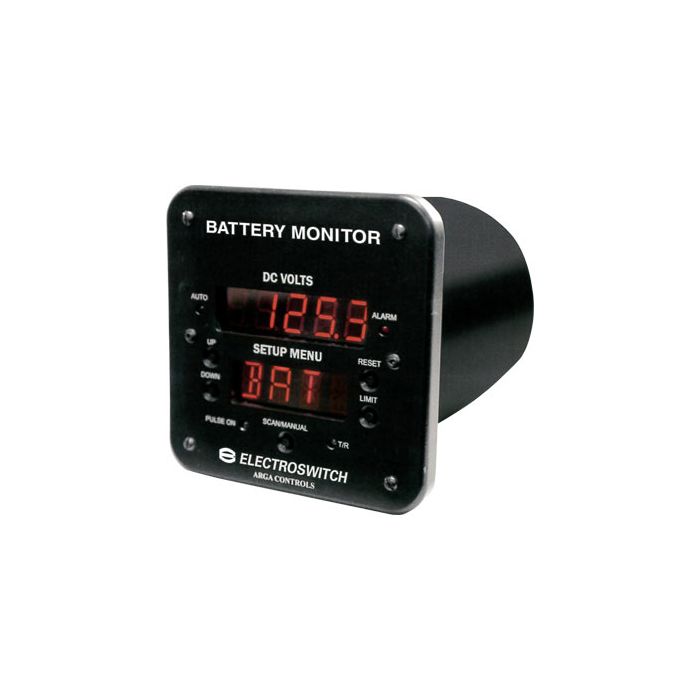

Arga Battery Monitor Panel Mount

The Arga Battery Monitor Panel Mount from Electroswitch monitors battery voltage and ground fault detection for DC systems. A LED display identifies alarm conditions in addition to audible alarms. Easily calibrate and set alarm thresholds through the front panel menu.

Alarm functions: battery voltage, ground fault detection, AC power loss, ripple voltage, ripple current, high impedance and predictive corrosion detection.

Remote monitoring and reporting is ideal for multiple and distant locations. The Arga Battery Monitor Panel Mount supports Serial DNP3.0, Modbus and RS485 communications.

  • Adjustable alarm threshold set points
  • High / low battery voltage alarms
  • ± Ground fault detection with alarm
  • AC charger power loss
  • High accuracy ± 0.2 VDC
  • Open cell / AC charger malfunction alarm
Contact Rating 2A at 120 VAC or 28 VDC, 25 mA at 150 VDC

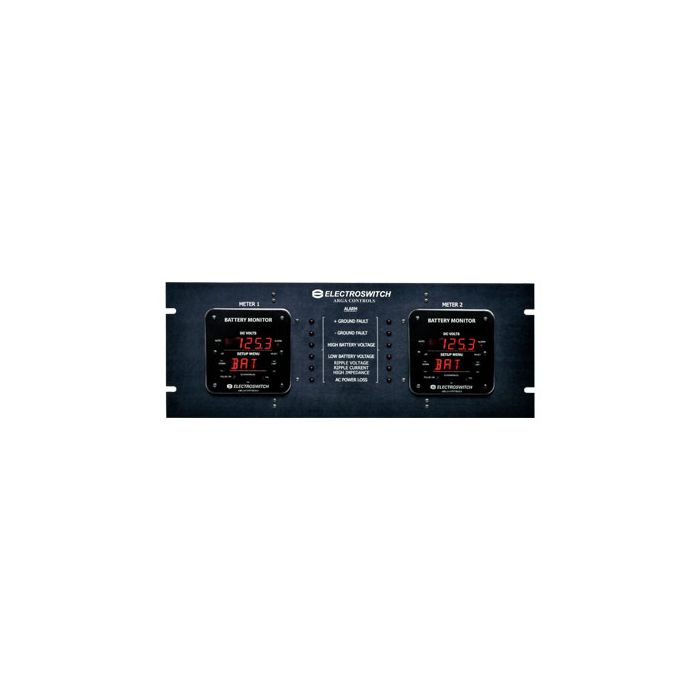

Standard Part Numbers 25-1000-125A for 125 VDC installations25-1000-250A for 250 VDC installations25-1000-48A for 48 VDC installationsFor 19" Rack (single meter)15-1000-125A-1 for 125 VDC installations15-1000-250A-1 for 250 VDC installations 15-100
Voltages 24 VDC, 48 VDC, 125 VDC, 250 VDC
Standard Outputs Digital: DNP3.0, ModbusAnalog: 4~20 mA
Alarms Alarm relays are Form C contactsRelay 1: + ground faultRelay 2: - ground faultRelay 3: high battery voltageRelay 4: low battery voltage, open battery, loss of AC to charger
Voltage Indication 0 to ± 199.9 VDC in 0.6" bright red LED digits and decimal pointAccuracy is ± 0.2 VDC (125 VDC model)
Ground Resistors 30.83 KΩ ± 1% from each bus to ground (for 125 V battery)60.50 KΩ ± 1% from each bus to ground (for 250 V battery)15 KΩ ± 1% from each bust to ground (for 48 V battery)
Battery Input 50–180 VDC, 3VA (for 125 V battery)100–360 VDC, 5VA (for 250 V battery)36–72 VDC, 3VA (for 48 V battery)
Dimensions 4.33" W x 4.33” H
