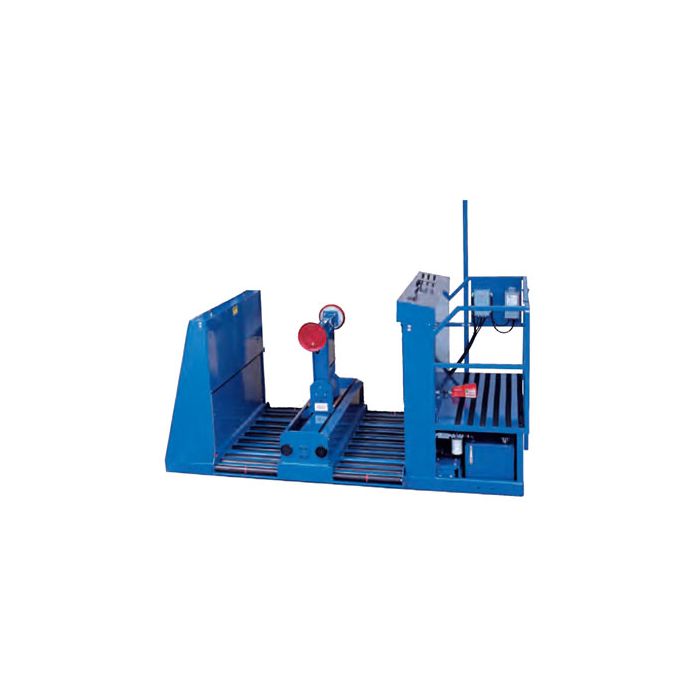

BHS BE-SL: Single Level Battery Extractor

The BHS BE-SL single level battery extractor is an ideal forklift battery changer for fleets that use between 1 and 99 batteries.

Designed with two pass-through roller beds and a powerful vacuum extractor arm to substantially reduce battery change-out time. Vacuum extraction reduces wear and tear on batteries and non-proprietary hydraulic / electrical components lowers replacement part costs.

  • BE-lloT package otters real-time data and reporting, predictive maintenance notifications, operator login accountability, and asset protection (see next page for more details)
  • First 6 months of the BE-lloT package included. After initial 6 months, additional subscription fees apply.
  • Heavy-duty construction for added reliability
  • Low-maintenance design reduces preventative maintenance frequency
  • No exposed components for added safety
  • Durable powder coat finish resists both acid and scratches
  • Manual control of hydraulics for easy operation
  • Vacuum extraction reduces wear and tear on batteries
  • Vacuum extractor arm adjustable for various reach requirements*
  • Non-proprietary hydraulic and electrical components lower replacement part costs
  • Redesigned hydraulic system for increased flow capacities and consistent function speeds
  • Quiet-running dual floor drive system provides positive traction on wet or dry surtaces*
  • BHS exclusive Non-Inter Flow (NIF) hydraulic manifold system stabilizes the lift cylinders to ensure a level roller bed during load transfers*
Vacuum Release Time < 1 s
Vacuum 21" Hg / 711 mbar
Vacuum Pump 1/3 hp / 0.25 kW
Hydraulic Power Unit 5 hp / 3.73 kW
Control Circuit Voltage 120 V ac
AC Current Draw 20.2 / 10.1 A
Vacuum Attach Time < 1 s
Draw Bar Pull / Magnet 800 lb to 1,200 lb
Raise / Lower Speed 0 to 10 ft/min / 0 to 0.05 m/s
Travel Speed 0 to 190 fl/min / 0 to 0.97 m/s
Input Voltage 240/480 V / 3 ph / 60Hz
Draw Bar Pull / Vacuum 1,000 lb
Hydraulic Pump 8 gal/min / 30 L/min
Full Load Capacity 10,000 lb
Minimum Battery Height 17.75"
Guide Track 2" x 2.5" Angle
Roller Height 6.5" Min / 26.5" Max
Total Compartment Rollers 11
