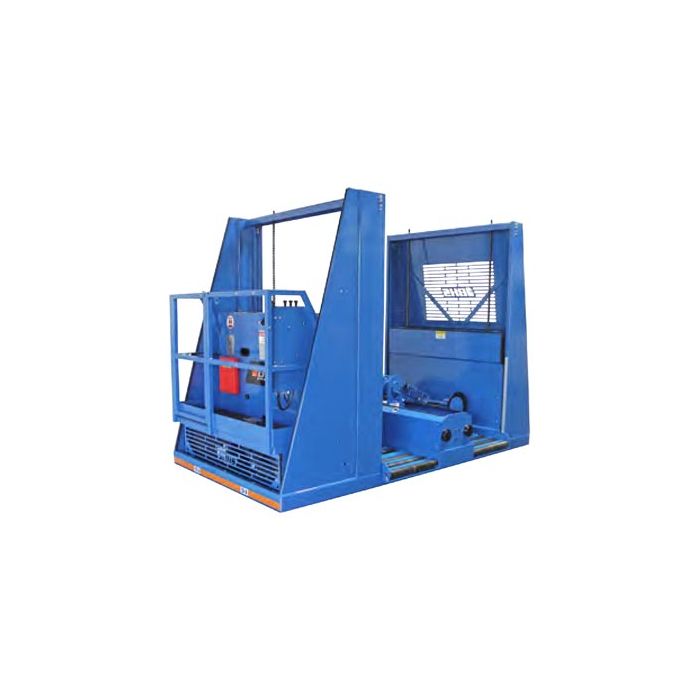

BHS BE-DS: Double Stack Battery Extractor

Designed to transfer batteries from racking systems up to two levels high, the BHS BE-DS double stack battery extractor can efficiently change batteries while conserving valuable space. The BE-DS provides dependable service for battery fleets ranging from 100 to 149 batteries.

Vacuum extractor arm adjustable for various reach requirements
Quiet-running dual floor drive system provides positive traction on wet or dry surfaces
BHS exclusive Non-Inter-Flow (NIF) hydraulic manifold system stabilizes the lift cylinders to ensure a level roller bed during load transfers
Four lift cylinders, in combination with four-point equalization, assure smooth and level vertical movement of the roller bed when empty or loaded
Five hydraulic-powered rollers per compartment provide a brake for safe, easy battery transfer

Vacuum Release Time	< 1 s
Vacuum	21" Hg / 711 mbar
Vacuum Pump	1/3 hp / 0.25 kW
Hydraulic Power Unit	5 hp / 3.73 kW
Control Circuit Voltage	120 V ac
AC Current Draw	20.2 / 10.1 A
Vacuum Attach Time	< 1 s
Draw Bar Pull / Magnet	800 lb to 1,200 lb
Raise / Lower Speed	0 to 16 ft/min / 0 to 0.08 m/s
Travel Speed	0 to 190 ft/min / 0.97 m/s
Input Voltage	240/480 V / 3 ph / 60Hz
Draw Bar Pull / Vacuum	1,000 lb
Hydraulic Pump	8 gal/min / 30 L/min
Full Load Capacity	10,000 lb
Minimum Battery Height	17.75"
Guide Track	2" x 2.5" Angle
Roller Height	6.5" Min / 56" Max
Total Compartment Rollers	11
